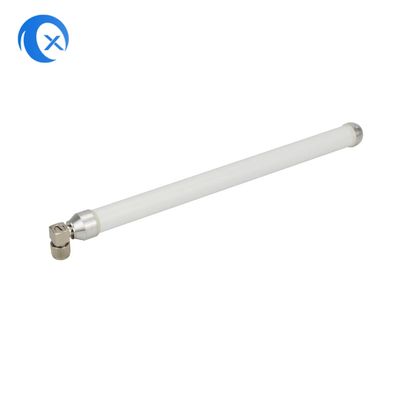

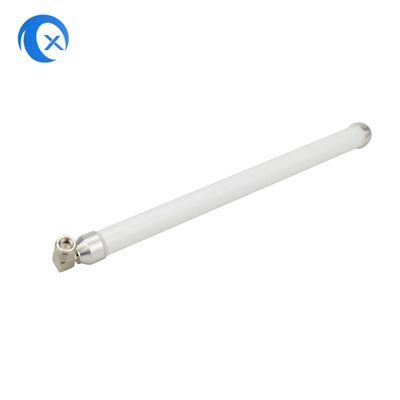

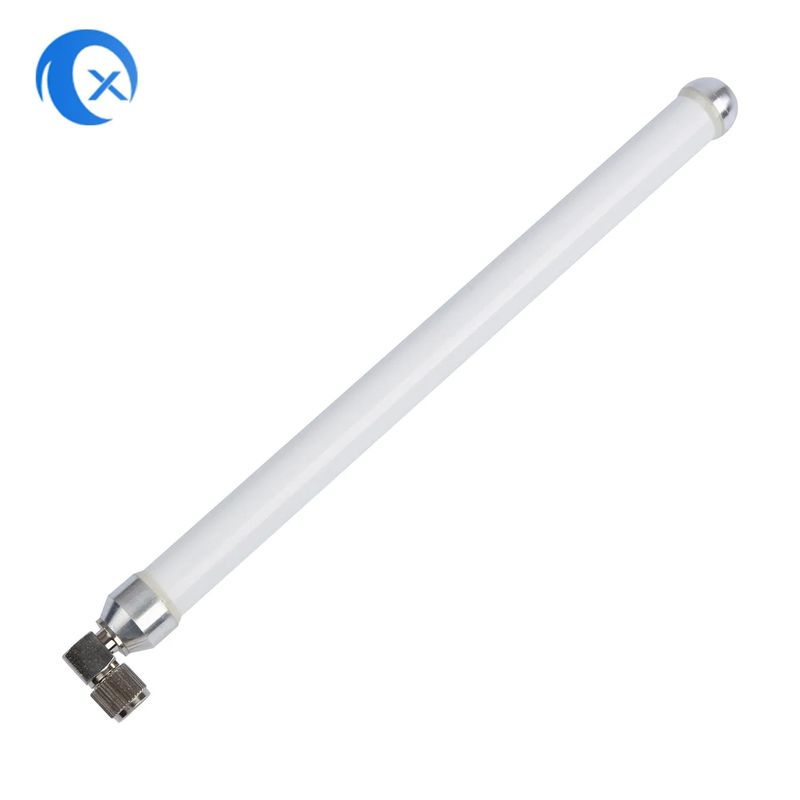

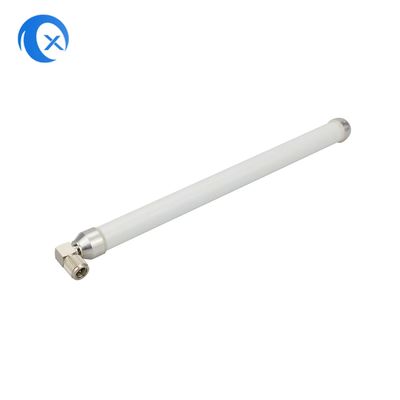

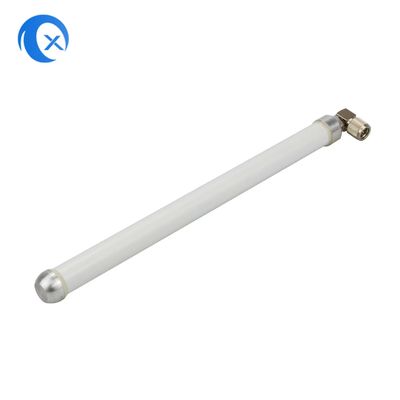

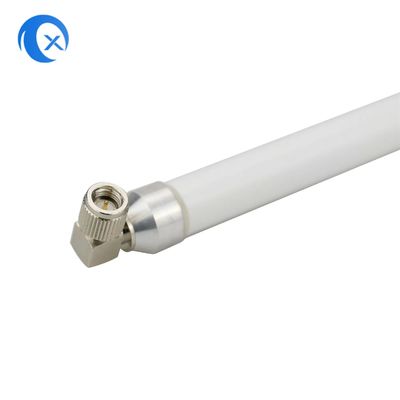

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

큰 이미지 :  2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

제품 상세 정보: 결제 및 배송 조건:
최소 주문 수량: 100
가격: 8.9

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

설명
모델 번호: TX-HG005 구조 형태: 표면 안테나
VSWR: 1.5~2 얻다: 5 DBI
치수: 18*200 순 중량: 36g
재료: 유리 섬유 빈도: 2.4GHz
편광: 선의 임피던스: 50 옴
라디에이터 재료: 놋쇠 커넥터 유형: SMA 숫놈 커넥터
작동 온도: -20 ℃ ~ +60 ℃ 저장 온도: -40 ℃ ~ +80 ℃
케이블 유형: /
강조하다:

2.4GHz fiberglass base antenna

,

5dBi SMA connector antenna

,

fiberglass base station antenna with SMA

2.4G 5dBi Waterproof Omni UHF/VHF Fiberglass Antenna
2.4G 5dBi waterproof Omni UHF/VHF fiberglass antenna
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 0 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 1 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2
Electrical Characteristics
Frequency 2.4 GHz
V.S.W.R <= 2.0
Antenna Gain 5 dBi
Polarization Linear
Impedance 50 Ohm
Material & Mechanical Characteristics
Material of Radiator Brass
Material of Plastic Fiberglass
Cable Type /
Connector Type SMA male connector
Environmental
Operation Temperature -20˚C ~ +60˚C
Storage Temperature -40˚C ~ +80˚C
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 3 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 4
Teng Xiang electronics is an experienced manufacturer of RF products. Especially in the range of Antennas, RF coaxial cable assemblies, RF connectors. We aim to deliver innovative technologies and solutions to meet the rapidly evolving wireless industry catering to 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, GPS/GLONASS/BeiDou frequencies, and more. With a focus on telecommunications, Security, Automotive, Medical, IoT, and other markets. We provide a customized solution according to customer's requirements. With our in-house design, R&D, and manufacturing, the team is always on hand to develop a high-quality product for customers. By providing our clients and customers with high-quality products and exceptional customer service, we focus on all our customers and provide them with the exact same excellent service and considerations.
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 5 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 6 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 7 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 8 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 9 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 10 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 11
Why Choose Us?
  • Hundreds of antenna products for optional, they used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
  • We provide a customized solution according to your requirements, for antennas, coaxial cables, and plastic parts. With our in-house design, R&D, testing, and manufacturing.
  • More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
  • By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
